Scandia Electric Sauna Heater | 3.5 KW – 18.0 KW

Scandia Traditional Finnish Sauna Heater

Scandia’s traditional Finnish electric sauna heaters are designed for use in a cedar sauna room. The sleek, compact, and 100% stainless steel design creates a heater that’s as beautiful as it is functional.

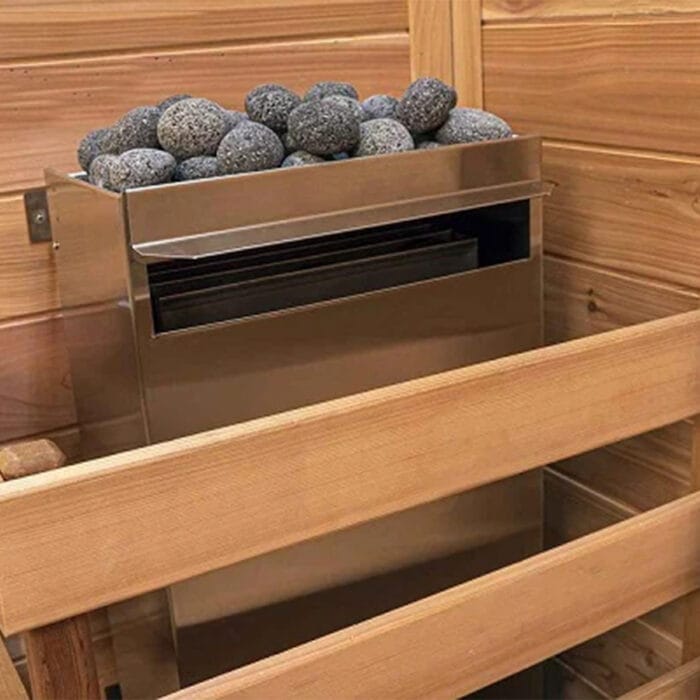

This small heater utilizes convection-style airflow and is a wall-mounted unit that is directly wired into the building. Includes elevated rock tray designed to prevent water application from damaging the unit. This heater requires an electrical supply and includes all wire connections and supplied leads rated for high-temperature application.

Scandia is also the exclusive preferred sauna heater supplier for some of the largest fitness clubs and health centers in both the United States and Canada. You will also find Scandia’s electric sauna heaters in top resorts, hotels, and universities around the world.

Sizing Guide

• 3.0KW – For rooms measuring up to 140 cubic feet
• 4.5KW -For rooms measuring up to 210 cubic feet
• 6KW– For rooms measuring up to 294 cubic feet
• 7.5KW– For rooms measuring up to 448 cubic feet
• 9KW– For rooms measuring up to 616 cubic feet
• 12KW– For rooms measuring up to 980 cubic feet
• 15KW– For rooms measuring up to 1460 cubic feet
• 18KW– For rooms measuring up to 1680 cubic feet

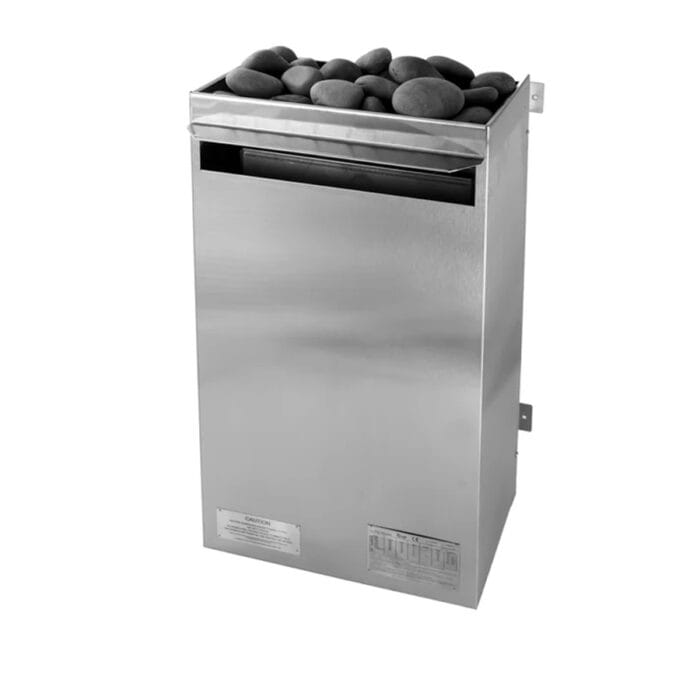

Electric Sauna Heater by Scandia – Small Specifications

• Dimensions: 10 3/4″D x 16″W x 23 1/4″H
• UL Listed

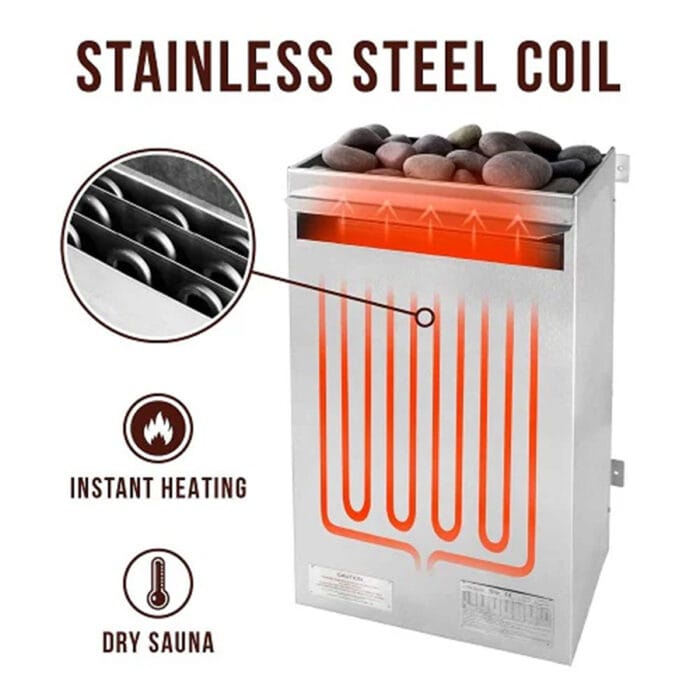

• 22ga Brushed Stainless Steel design that features a unique steamer tray design keeps your elements dry while giving you instant vaporization
• Safe and built-in thermal cutout to protect against overheating
• The shell features an unprecedented 10-year warranty and a one-year warranty on parts

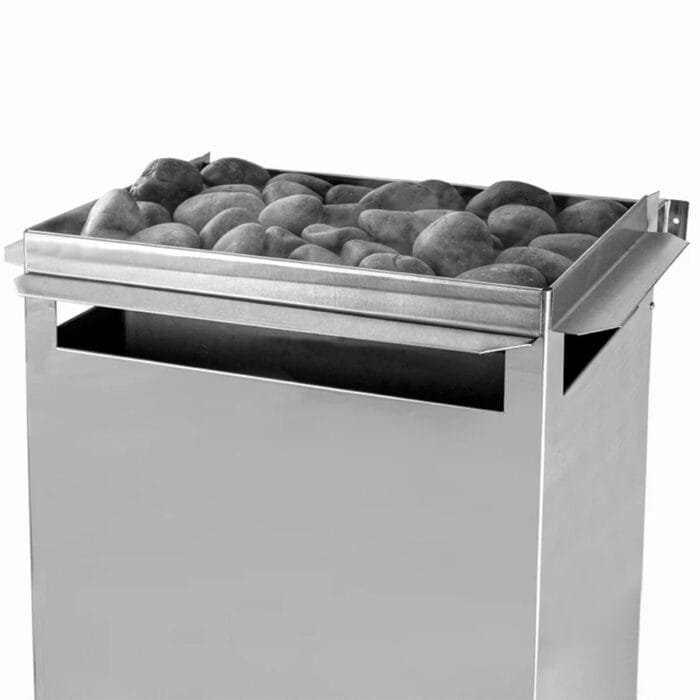

• Solid Tray design – Allows water to be poured on the rocks without element damage
• Sauna rocks included
• Installation instructions included
• Thermostat sensor wall cover
• F & H (Small) Control box housing size 2 5/8″D x 4 1/8″W x 8 1/4″H  Contains the timer thermostat and contactors in one big box

Electric Sauna Heater by Scandia – Medium Specifications

• High quality and durable sauna heater; heats from 294-616 cubic feet.
• 22ga Brushed Stainless Steel design that features a unique steamer tray design keeps your elements dry while giving you instant vaporization
• Safe and built-in thermal cutout to protect against overheating
• The shell features an unprecedented 10-year warranty and a one-year warranty on the parts
• Solid Tray design – Allows water to be poured on the rocks without element damage
• Sauna rocks included
• Installation instructions included
• Thermostat sensor wall cover

Electric Sauna Heater by Scandia – Large Specifications

• High quality and durable sauna heater; heats from 980-1680 cubic feet.
• 22ga Brushed Stainless Steel design that features a unique steamer tray design keeps your elements dry while giving you instant vaporization
• Safe and built-in thermal cutout to protect against overheating
• The shell features an unprecidented 10-year warranty and a one-year warranty on the parts
• Solid Tray design – Allows water to be poured on the rocks without element damage
• Sauna rocks included
• Installation instructions included
• Thermostat censor wall cover

SCANDIA SAUNA SIZING GUIDE

Amperage

6.0KW/240V – 25 Amps

6.0KW/208V – 28.9 Amps

7.5KW/240V – 31.3 Amps

7.5KW/208V – 36.1 Amps

9.0KW/240V – 37.5 Amps

9.0KW/208V – 43.3 Amps

12.0KW/240V – 50 Amps

12.0KW/208V – 57.7 Amps

15.0KW/240V – 62.5 Amps

15.0KW/208V – 72.2 Amps

18.0KW/240V – 75 Amps

18.0KW/208V – 86.6 Amps

Dimensions (D x W x H)

3.0-4.5KW – 10 3/4″D x 16″W x 23 1/4″H

6.0KW, 7.5KW, and 9.0KW – 16″ x 14″ x 28 3/4″

12.0KW, 15.0KW, and 18.0KW – 26″ x 18″ x 29″

 MADE IN THE USA SINCE 1964!
