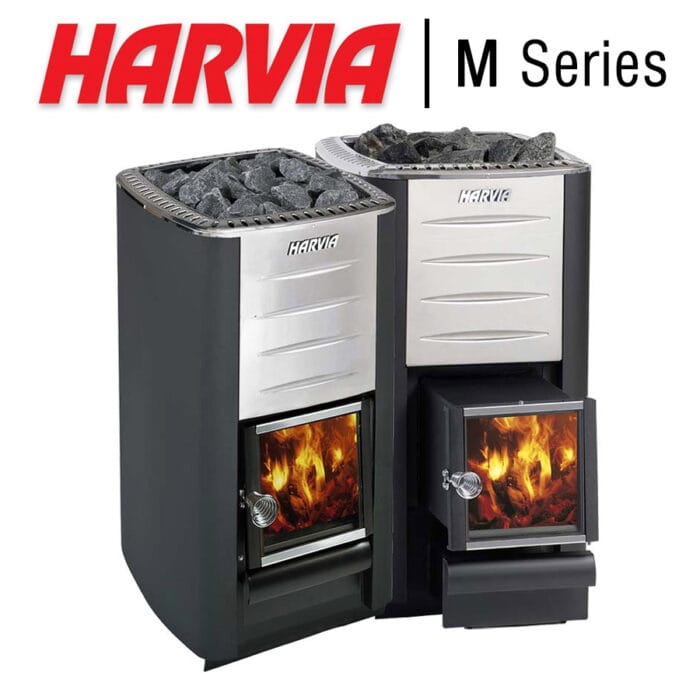

Harvia M3 & M3 SL

A best-selling classic, the Harvia M3 Series traditional wood-fired sauna stoves catch the eye and is ideal for a smaller saunas up to 459 cubic ft (CF).

Requires a minimum of 66 lbs of stones, sold separately.

M3 Series Descriptions

M3

With a classic design, even heat, and efficient air circulation the Harvia M3 can turn smaller saunas into a big deal.

It makes for a relaxing getaway with a touch of traditional sauna atmosphere.

Allow the shimmer of the warm glow from the glass door take you to your happy place where your stress melts away with the heat.

The M3 wood burning heater can be equipped with a pipe model water heater for extra amenities.

M3 SL

If you are looking to get additional uses out of your sauna stove than this Harvia M3 SL is the stove for you.

The M3 SL is placed in the sauna room and your firewood is loaded into the fire chamber from the other side of the wall.

The M3 SL will give your small or medium sauna great steam.

While someone is enjoying the heat in the sauna room another bather can be relaxing in the next room while appreciating the glow of the flames behind the cast-iron-framed glass door.

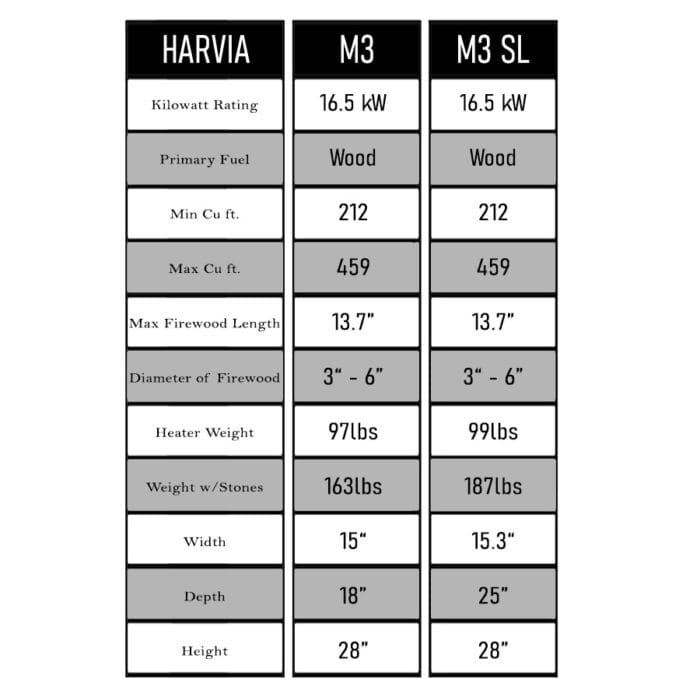

Features of Harvia M3

• 16.5 kilowatts
• Stainless Steel
• Black color
• Floor installation
• Requires a minimum of 66lbs of stones ( 2 boxes-AC3020)
  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• Wood burning stove
• For sauna rooms 212 cu. ft. to 459 cu. ft.
• Dimensions: 15″ W x 18″ D x 28″ H

Includes

• Sauna heater
• Adjustable legs
• Stove door
• Ash box
• Installation and operation manual

Features of Harvia M3 SL

• Heats two rooms
• Heater and fireplace
• Wood-burning
• 16.5kW
• For sauna rooms from 212 to 459 cu. ft.
• Requires a minimum of 66lbs of stones ( 2 boxes-AC3020)
  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• cast-iron-framed glass door
• Floor model
• Upper connection opening
• Soot opening
• Designed, engineered, and made in Finland
• Dimensions: 15.3″ W (390mm) x 25″ D (640mm) x 28″ H (715mm)

Includes

• Sauna Stove
• Stove door
• Ash box
• Fire chamber extension
• Installation and operation manual

M3 Series Models

Cu Ft. Ranges

Harvis M3 Series = 212′ to 459′

Installation and Operational Manual

Harvia Wood Fire Stove Operation & Installation Guide – CLICK HERE

Spirit Model Data Sheets

Hariva M3 Datasheet – CLICK HERE

Hariva M3 SL Datasheet – CLICK HERE

Spirit Declaration of Conformity

Hariva M3 Declaration of Performance – CLICK HERE

Size Your Sauna

CLICK HERE for Harvia Sauna Heater Sizing Sheet

Harvia Warranty

CLICK HERE for Harvia Sauna Heater Warranty

Safety Sheet

Harvia Safety Distances – CLICK HERE

Stone Requirements

Harvia Stone Requirements – CLICK HERE

SHIPPING

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

  – The driver is responsible for curbside delivery “only” and will lower the items to ground level.

  – Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

  Our goal is to ensure your project success.

REQUIRED

Sauna Rocks

110lbs of Sauna Rocks (2 boxes) are required for this heater.

(warranty is not valid without Harvia rocks)

Operating Accessories

Wood Stove Pipe Adapter 6″

This adapter is required for North American 155 mm (6″) piping conversion.

• Stainless steel material
• Graphite-black powder paint
• Dimensions: 6″D x 6 1/2″H

Harvia M Series Protective Sheath

The Harvia WL450 protective shield is designed for use with the M1, M2, M3 and M3SL wood sauna stoves.

The protective shield reduces the safety distance to combustible materials. This features a steel material, with a black finish.

• 3-sided sheath
• Steel material
• 2 year warranty

Harvia Protective Bedding SM

The Harvia WL100 protective bedding is used when a fireplace or stove is installed onto a waterproofed tile or hardwood floor.

Made of aluminum-zinc coated steel, painted black.

• Harvia Stove Protective Bedding
• Installation manual
• 2 year warranty

Stainless Steel Water Tank

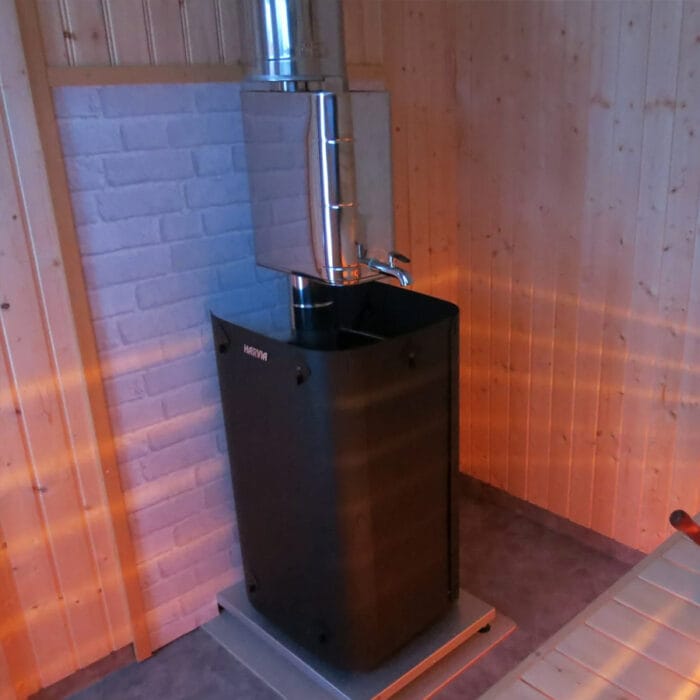

The Harvia pipe model water heater is placed directly on top of the stove, and the tank holds 22 litres of water.

The water heats up quickly, as the smoke pipe runs through the tank and acts as a wall inside it.

The pipe model water heater is compatible with all wood-heated Harvia stoves

Sauna Wood Stove Chimney Extension 500M

This chimney extension is made of a stylish stainless steel or black and can be installed both indoor and out.

The inventive Harvia WHP500 steel chimney extension is designed to prevent movement caused by temperature changes.

• Stainless steel or Black powder coated steel
• CE marking
• Mounts in vertical position
• Prevents movement caused by temperature changes
• Can be installed indoors and out
• Sootfire resistant
• Freeze thaw resistant
• Designed, engineered, and made in Finland
• Dimensions: 8.6″ D (220mm) x 19.6″ H (500mm)
• 2 year warranty

Sauna Wood Stove Chimney Extension 1000M

The inventive Harvia WHP1000 steel chimney extension is designed to prevent movement caused by temperature changes.

This chimney extension is made of classic stainless steel or coated black and can be installed both indoor and out.

• Stainless steel or Black powder coated steel
• CE marking
• Mounts in vertical position
• Prevents movement caused by temperature changes
• Can be installed indoors and out
• Sootfire resistant
• Freeze thaw resistant
• Designed, engineered, and made in Finland
• Dimensions: 8.6″ D (220mm) x 39.3″ H (1000mm)
• 2 year warranty

Sauna Wood Stove Chimney Kit

DESCRIPTION

The Harvia chimney is an easy-to-install stylish chimney solution. The steel chimney withstands extensive changes in temperature and has mainly been designed for use with woodburning stoves, smaller fireplaces, and iron stoves in detached sauna buildings.

The standard delivery of the steel chimney includes a steel chimney and a utility box with a rain cap, a rubber rain flange and an installation set for rain flange, a stainless steel lead-through flange for the ceiling, a lead-through insulation and protector. The package also includes a non-isolated smoke pipe. Supplementary parts are available as accessories for this stainless steel chimney. Thanks to an ingenious mechanism, the supplementary parts are wound together and the smoke pipes are also equipped with slots to lock them together. This prevents movement caused by temperature changes. Indoors, the chimney can be installed up to a height of 9′ 8″ without support and outdoors the corresponding self-supported installation height is 6′ 6″.

The rated maximum temperature of combus­tion gases for a furnace connected to a steel chimney is 600 ºC. The external diameter of the steel chimney is 8.66″ and the diameter of the smoke pipe is 4.53″. The safety distance to inflammable materials is 3.94″. The Harvia steel chimney has a CE-marking, so the product complies with all international fire- and operational safety requirements. The steel chimney is sootfire proof.

FEATURES

• Stainless steel or Carbon Black
• Includes utility box w/size opening templates
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Works with wood-heated stoves
• Works with smaller fireplaces
• Works with iron-stoves
• Able to be easily extended
• Touch protection is not needed if installed in a sauna
• Sootfire resistant
• Freeze thaw resistant
• Designed, engineered, and made in Finland
• 2 year warranty

INCLUDE

• Stainless Steel or Carbon Black chimney
• Utility box
• Non-insulated smoke pipe
• Rain cap
• Rubber rain flange
• Installation set for rain flange
• Stainless steel lead-through flange for ceiling
• Lead-through insulation and protector
• Installation manual

INSTALLATION MANUAL

Harvia Chimney Kit Specifications – CLICK HERE

Chimney & Assembly Kit

DESCRIPTION

The Harvia WHP1000500-PKG is everything you need for your sauna room chimney, including the chimney! This kit includes Harvia WHP1000500 stainless steel chimney and Harvia WHPASSYM which is the assembly kit to put it all together.

The Harvia WHP1000500 allows you to easily and safely extend your Harvia steel chimney. Thanks to the grooved joint mechanism, your extension and chimney will resist movement caused by temperature changes. With the capability of indoor and outdoor installation, the WHP1000500 gives you incredible flexibility.

FEATURES

• Stainless steel or Carbon Black
• Innovative design
• Complete package for convenience
• Prevents movement caused by temperature changes
• Can be installed indoors and outdoors
• Designed, engineered, and made in Finland

INCLUDE

• Harvia WHP1000500M Chimney
• Rain Cap
• Symmetrical Rain Flange
• Lead-through insulation and protector
• Lead-through flange
• Smoke Pipe
• Clamp

Smoke Pipe

DESCRIPTION

The Harvia WZ115100 smoke pipe complies with all international fire and operational safety requirements to help keep your heater safe. The smoke pipe is compatible with Harvia 10 wood burning heater and all Harvia wood burning sauna heaters (except Harvia 50).

FEATURES

• Stainless steel construction
• CE Certification
• Compatible with all harvia wood burning sauna heaters (except Harvia 50)
• Compatible with Harvia 10 heater
• 2-Year Warranty (Consumer use)

INCLUDE

• Smoke Pipe
• 2-Year Warranty (Consumer use)

INSTALLATION MANUAL

WZ115100 – Steel Pipe IOM – CLICK HERE

Have a Question About Our Heater?  Let us know.
